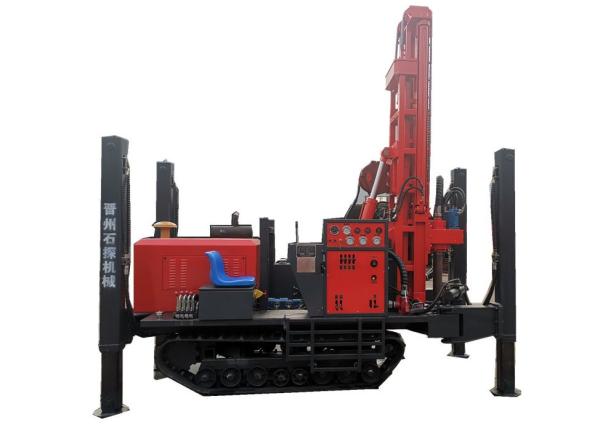

Pneumatic 55kw 180m Portable Water Well Drilling Equipment

  • 1
  • 2

Brand Name : ST

Model Number : ST-180

Place of Origin : hebei china

MOQ : 1set

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 2000sets/month

Delivery Time : 5days

Packaging Details : no packing

Certification : iso

Usage : Water Well

Weight : 4.5T

Drilling depth : 180

Dimension(L*W*H) : 3800*1500*2200mm

Contact Now

Crawler Pneumatic Impact 180m Water Drilling Rig
Water Wells Drilling Machine
The Crawler mounted water well drilling rigs is a light, efficient and multi-functional drilling equipment, which uses diesel engines as the power. The machine is mainly suitable for drilling wells, agricultural irrigation wells, and wells for other uses, especially for mountainous areas and rock formation water intake engineering. This series of crawler mounted water well drilling rigs produced by us adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder advancement. The advanced hydraulic technology greatly improves the drilling speed and working efficiency. All this kind of drilling machine needs to be used with air compressors. There are several models of crawler drilling rig with different specifications. You can choose the suitable model according to your requirements and the technical parameters of our machine.

The Main Parameters

Model
ST180
Drilling hole diameter
140-254mm
Drilling depth
180m
One-time advance length
3.3m
Walking speed
2.5km/h
Climbing angles (Max.)
30
Equipped capacitor
55kw
Using air pressure
1.7-2.5mpa
Air consumption
17-31m³/min
Drill pipe length
1.5m, 2.0m, 3.0m
Drill pipe diameter
76mm, 89mm
Rig lifting force
12t
Swing speed
45-65rpm
Swing torque
3200-4600(N.m)
Dimension
3800*1500*2200mm
Weight
4500kg

Pneumatic 55kw 180m Portable Water Well Drilling Equipment
