High Pressure Triplex Drilling Mud Pump for 800m water well hole
Characteristics
1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.
Application
BW1500/12 deep hole drilling hydraulic plunger triplex heavy duty slurry pump
BW1500/12 mud pump used for various engineering drilling rigs, geological drilling rig when drilling would like to nip the circulating fluid (mud or water),which is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.
BW1500/12 mud pump is a horizontal single-acting cylinder reciprocating piston pump with variable speed to change the displacement and pressure selected for use.
They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
Features of mud pump:
1. The pump adopts a large channel system, which can effectively prevent the blockage of large particles of sand and gravel.
2. The machine is equipped with rubber tugboat, which can be moved and fixed, which is convenient for engineering construction.
3. The machine adopts the structure of adjustable pressure limiting unloading valve, and the pressure can be set arbitrarily in the range of 0.5-5.0mpa to meet the needs of various construction. When the grouting pressure exceeds the set value, the unloading valve will open automatically and the slurry will return to the slurry storage tank. It will not affect the project quality due to overpressure and effectively protect the equipment and pipelines.
4. The machine adopts double inlet suction, the main suction inlet is the cement mortar inlet for engineering, and the secondary suction inlet is clean water inlet. When the mortar pump needs to stop for a long time, the water valve can be opened to clean the flow channel system of the pump at any time, so that the mortar pump will not be blocked by the deposition of cement mortar. This structure is also suitable for some double liquid grouting projects, which is really a multi-purpose machine.
5. The plunger of the machine adopts multi-stage sealing assembly, and the ball valve adopts high hardness steel ball valve, which greatly prolongs the service life of the main vulnerable parts.
6. The machine has high suction performance and large particle diameter sand passing capacity, so that large particles (≤ 6 mm) can be transported smoothly (when the total content is less than 5%).
Product Tags:
|
|

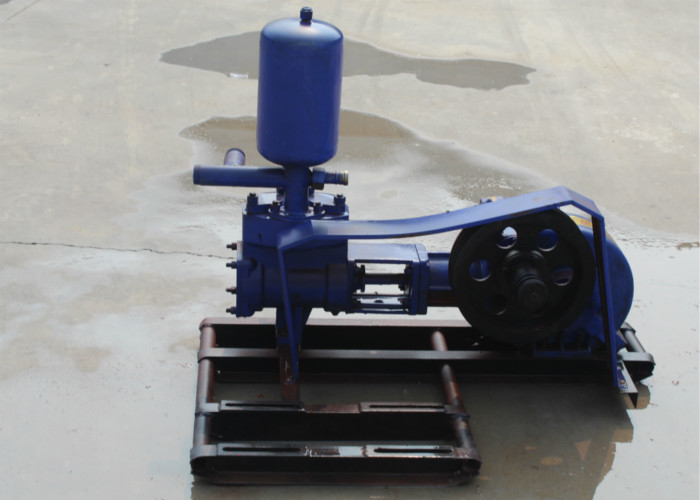

Triplex BW1500/12 800m Drilling Rig Mud Pump Images
|
