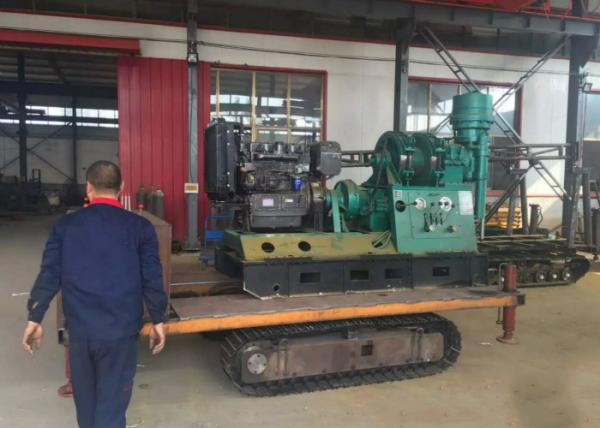

XY-2B Horizontal Water Well Drilling / Crawler Mounted Hydraulic Crawler Drilling Rig
Features:
1. Integrate the drill rig, crawler , mast, mud pump, control panel into one unit.
2. Walking of the crawler, base support and the rising and falling of the mast are all driven by the hydraulic system of the drilling rig , and it is very easy to operate.
3. The whole drilling equipment can be moved in whole, increasing drilling efficiency and reducing labor intensity.
4. Having mast landing and folded function, it is to walk and transport.
5.The drilling rig is spindle type, mechanical transmission, hydraulic feeding, and hydraulic clamping drilling tool. When rotary drilling it can carry out alloy-bit drilling and diamond drilling. When impact drilling it can achieve impact—vibration casing while drilling.
Specifications:
Electric motor or diesel type hydraulic horizontal directional drilling machine
1. Hydraulic feeding drill rig for soil test and SPT equipment .
2.Engineering geological survey, hydrology, water wells,sky buildings,dams,harbors
bridge,oil exploration,etc
4.Power ,flexible and easy manitenance.
5.Small and light weighted core drill
6. Electric motor or diesel type hydraulic horizontal directional drilling machine
Applications:
XY-2B hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydro-geological, water well and pile grouting hole drilling. It is equipped with two-wheel trailor, in order to move easily.
Technical Specification of Electric motor or diesel type hydraulic horizontal directional drilling machine :
| Drilling capacity (m) | Φ73 rod | 100 |
| Φ60 rod | 320 |
| Φ50 rod | 380 |
| Φ42 rod | 530 |
Spindle speed(r/min) | Forward | 57;99;157;217;270;470;742;1024 |
| Reverse | 45;212 |
| Max torque(Nm) | 2760 |
| Drilling angle renge | 0-90° |
| Spindle max pull force(KN) | 60 |
| Spindle stroke (mm) | 600 |
| Hoist max lift capacity with single rope (KN) | 30 |
| Spindle inner dia (mm) | 76 |
| Oil pump | SCB32/12 |
Power unit | Electric motor | Y180L-4,22Kw |
| Diesel engine | 395K2,19.85Kw |
| Overal dimension (mm) | 2150×900×1690 |
| Drill weight(excluding power)(kg) | 950 |
