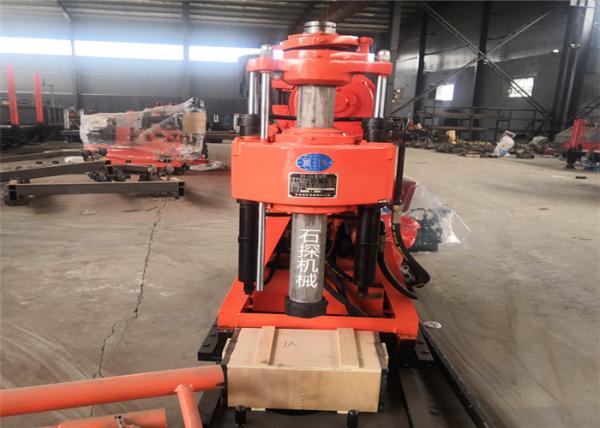

High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150

Name: High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy 150
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-150

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Product Name : Soil Testing Drilling Rig Machine

Weight : 600 KG

Geological : Soil, Rock, Hard Rock

Drilling Depth : 50-100 Meter

Type : Portable Type

Application : Different Field Drilling

Contact Now

High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150

Features of small hydraulic core drill rig

1. Power can be electric motor or diesel engine as options.

2. Two or four wheels can be mounted on tractors, trailers or cars. Easy for outdoor and rugged place drilling.
3. Integrated mud pump, gearbox, hoist, etc. Not only saving land, but also easy to take and operate.
4. Different operation handles to control working. One person is able to operate it.

5. Easy to assemble and dissemble. One person is able to handle.

XY-150 Main Technical Parameters

Drilling depth	150m
Maximum open hole caliber	400mm
End hole caliber	75mm
Diameter of drill rod	50mm
Drilling angle	90~75
Weight(not include power)	760kg
Dimension	2000mm1000mm1400mm

Other related model for your reference:

Model	Drilling caliber	Max. drilling depth	Application Range
XY~100	300mm~75mm	100m	Geological exploration & survey; Mineral prospecting; Water wells; Blast hole; Geothermal heat wells and so on;
XY-130	300mm~75mm	130m
XY-150	400mm~75mm	150m
XY-180	400mm~75mm	180m
XY-200	400mm~75mm	200m

High Power Hydraulic Core Drilling Rig Machine Water Well Use Xy -150
