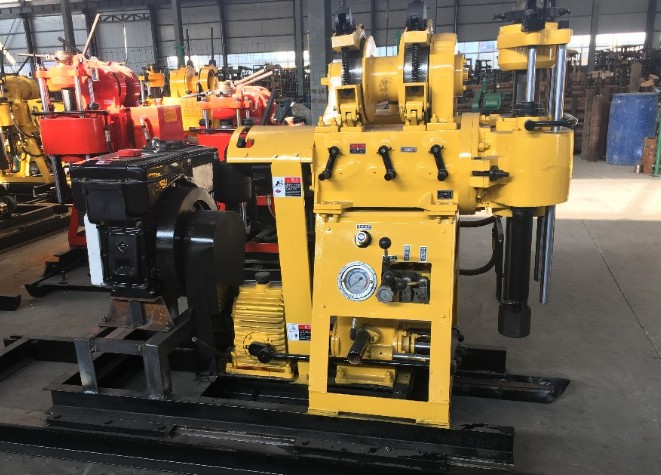

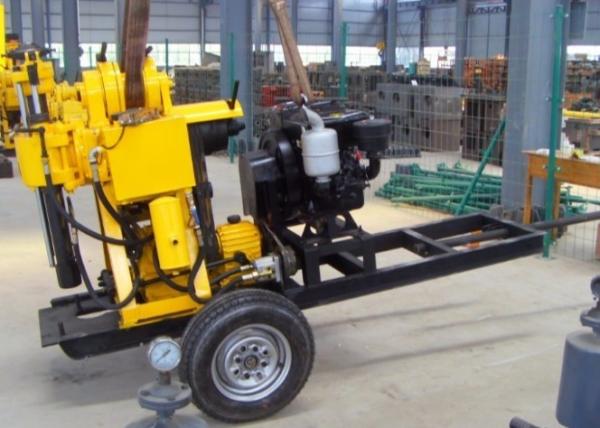

Bore Hole Portable Rotary Water Well Drill Rig Hydraulic Borewell Machinein Troduce
Hydraulic Borewell Machineintroduce
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With hydro-automatic feeding device, and high drilling efficiency.
Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.
Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
Hydraulic Borewell Machine parameters
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension | 2800*950*1700mm |
Hydraulic Borewell Machine usage:
Coal mining,Gold mining
Rock drill,crushing the hard rock for road construction
Underground ore drilling
Water well 100 meters to 200 meters
Working in the tunnel
Blasting hole drilling
Outdoor quarry projects
Drill Rig Applicate:
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge,
water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Core mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
