| Drilling Rig | Swivel Head |
| Drilling depth | Max.300~400m | Spindle speed | 60 105 165 228 235 405 638 880 r/min |
| Hole diameter | Max.600m | Spindle stroke | 550kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.50KN |
| Angle range | 0°~360° | Spindle lifting capacity | Max. 37KN |
| Oil pump | Water pump |
| Model | YBC-20/125 | Model | Gear oil pump |
| Rated pressure | 8Mpa | Working pressure | Max. 10Mpa |
| Flow speed | 20ml/r | | |
| Rated speed | 150r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 212kgs | Model(diesel engine | ZS1115 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 18.5KW |
| Drum diameter | 140mm | Rated speed | 1800 r/min |
| WEIGHT | AROUND 980kgs |
| SIZE | 2330x1050x1620mm |

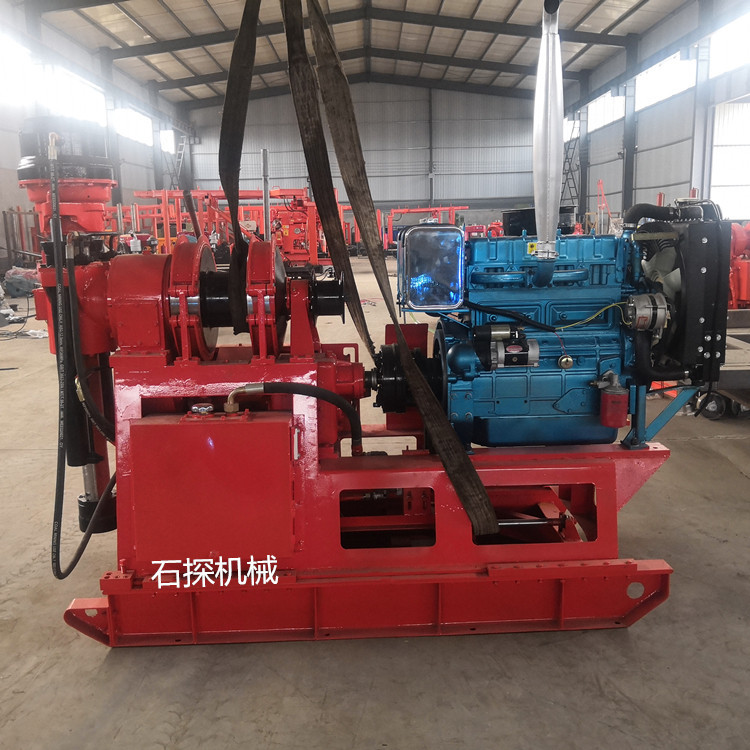

XY-2 Crawler Mounted Drilling Rig Main Advantages
With the hydraulic feeding mechanism,improve the drilling efficiency,reducing the labor intensity of workers.
The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency, safe and reliable
Furnished with hole bottom pressure gauge pressure indicator,and easy to master the status inside the hole
The handle centered, convenient operation.
The drilling machine has the advantages of compact structure,small volume,light weight,convenient move,decomposition and strong,suitable for the plains or mountain areas.
Adopting large Kelly,double guide pipe. Increase the stability
Soil sampling method
1. Distribution: samples shall be taken according to the soil type and the distribution of crop varieties, and according to the different soil fertility. The sampling points are distributed in zigzag or snake shape, which should be as uniform and random as possible.
2. Determine the sampling position and depth: the sampling position and depth shall be determined according to the thickness of the cultivated layer. Generally, the sampling depth is 0-20cm
FAQ Shitan Drilling Rigs
Q1.What is the main function of our drilling rig?
Ans.: It has different models used for all kinds of geological, it is the best choice for drilling hole station construction.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3.. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
