XY-1 Gold Mining 110mm Diamond Exploration Geotechnical Drilling Rigs
XY-1 Geological Exploration Drilling Rig Introduction
This is a portable drilling rig with oil pressure feed. The rated drilling depth is 100m, the maximum opening diameter is allowed to be 130mm (or within 500mm), and the final hole diameter is 75mm.
XY-1 Geological Exploration Drilling Rig Techs:
| Drill | |
| Drilling depth | 100m |
| Drill rod dia. | 42mm |
| Initial hole dia. | 110mm |
| Final hole dia. | 75mm |
| Angle range | 90°-75° |
| Dimensions(L×W×H) | 1640×1030×1440 (mm) |
| Weight(without power unit) | 500kg |
| Swivel Head |
| Spindle speed(3-speed) | 142/285/570 r/min |
| Spindle stroke | 450mm |
| upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Hoist |
| Max .lifting capacity(1-speed,single rope) | 10KN |
| Cable volume (number) of hoisting drum | 27m |
| Wire rope dia. | 9.3mm |
| Mud Pump |
| Model | Horizontal reciprocating single-acting piston pump |
| Displacement max | |
| Equipped with diesel engine | 95L/min |
| Equipped with motor | 77L/mm |
| Allowable working pressure max | 1.2Mpa |
| Continuous working pressure | 0.7Mpa |
| Suction pipe dia | 32mm |
| Discharge pipe dia | 25mm |
XY-1 Geological Exploration Drilling Rig Advantages
With hydraulic automatic feeding device. Elevated drilling efficiency.
The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
Centralized handle, easy operation, safe and reliable.
The drilling machine,pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
XY-1 Geological Exploration Drilling Rig Application
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
Product Tags:
|
|

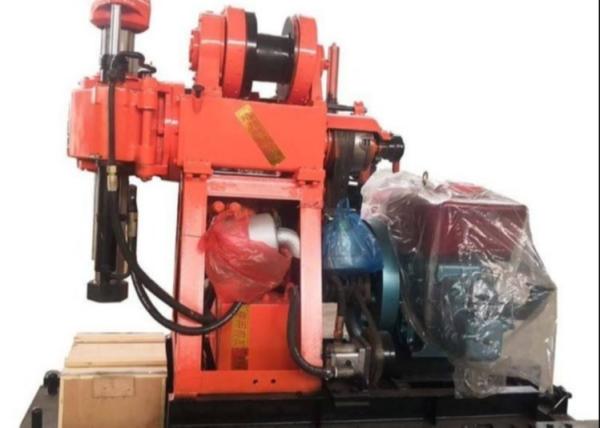

Gold Mining 110mm Exploration Drilling Rig Diamond Images
|
