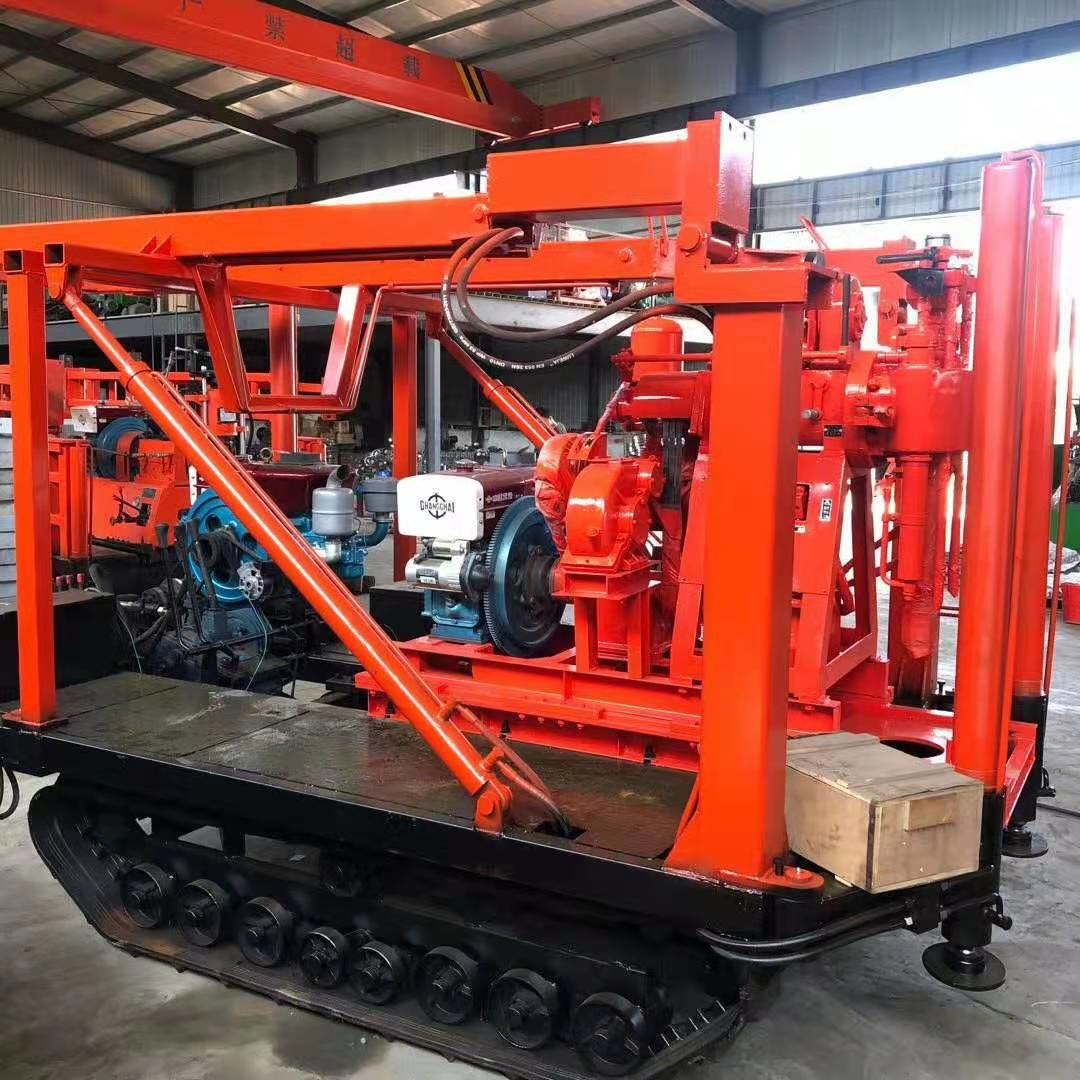

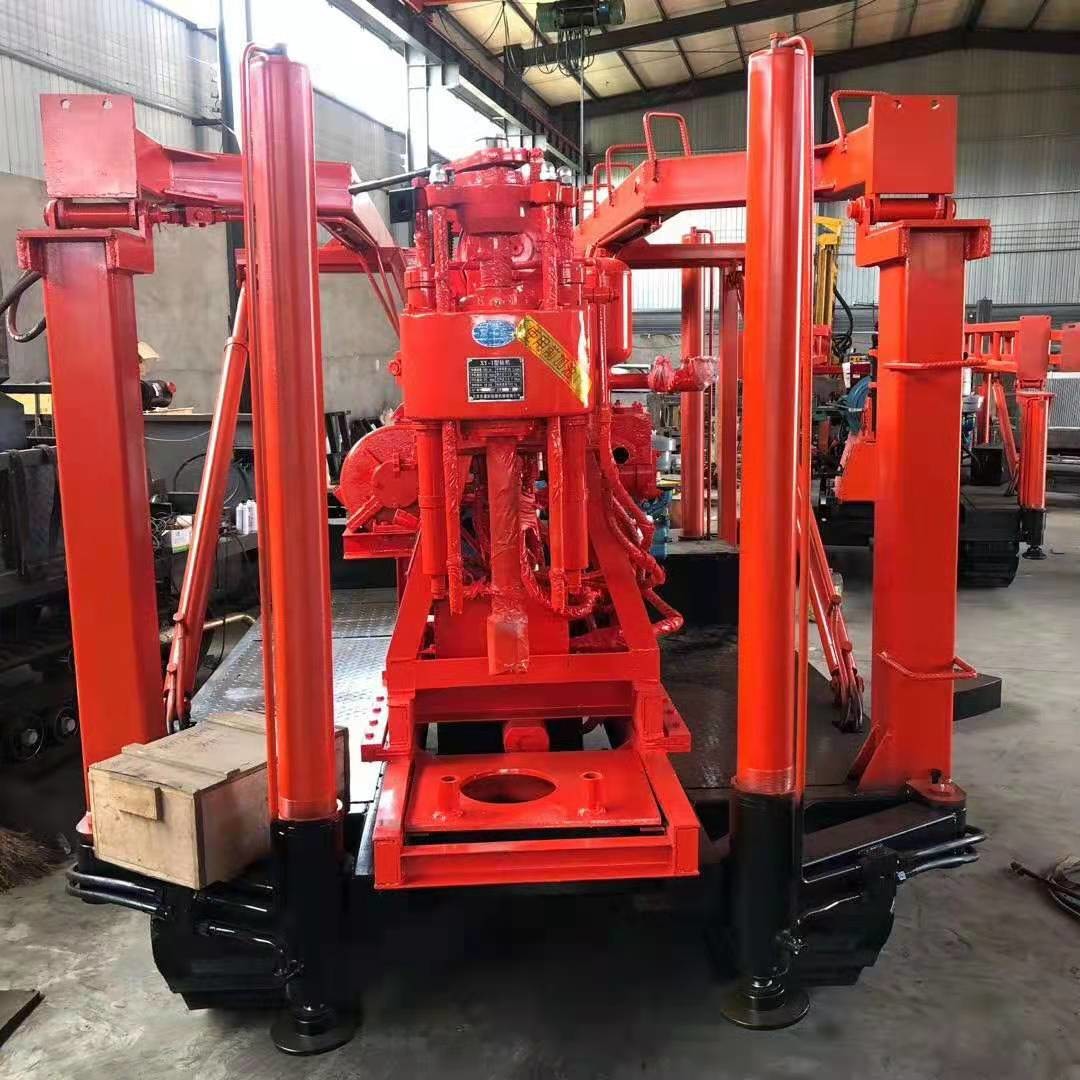

200m Borehole Drilling Portable Mounted Crawler Drilling Rig For Water Well
Hydraulic Borewell Machineintroduce
This drilling machine adopts big driven drill pipe and double guide rod to increase stability .This rig can move 350mm back and forth on the base, so it facilitates the removal of the drill pipe. This price does not include pumps.
Hydraulic Borewell Machine parameters
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension | 2800*950*1700mm |
Hydraulic Borewell Machine characteristic
GK-200 mobile drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
Hydraulic Borewell machine Feature:
Our water well drilling rig is a light, efficient and multifunctional drilling and drilling equipment powered by diesel engines. It is mainly suitable for drilling wells, agricultural irrigation wells and other well holes. It is especially suitable for water intake engineering in mountain area and rock stratum. This series of drilling well rigs adopt new hydraulic technology, which is equipped with high torque hydraulic motor rotary and large cylinder diameter hydraulic cylinder advancement. All drilling rigs need to be used with air compressor.
