Fast Oem St 200 Portable Water Well Drilling Rig Machine Yuchai Diesel Engine

Name: Fast Oem St 200 Portable Water Well Drilling Rig Machine Yuchai Diesel Engine
Brand: ShiTan
Price: 25000 USD

Fast Oem St 200 Portable Water Well Drilling Rig Machine Yuchai Diesel Engine Manufactures

Brand Name : ShiTan

Model Number : ST200

Certification : ISO

Place of Origin : China

MOQ : 1 SET

Price : USD 25000/SET

Payment Terms : T/T, Western Union

Supply Ability : 2000SETS/YEAR

Delivery Time : 7 DAYS AFTER PREPAID

Packaging Details : Plastic film and Standard export wooden box

Product Name : OEM Design ST 200 Portable Water Well Drilling Rig Machine

Drilling Depths : 200 Meters

Model : ST 200

Weight : OK

Drilling Diameter : 200mm

Warranty : 24 months

OEM : Customized

Material : Steel

After-sales service provided : Video technical support

Usage : Water Well Drilling

Diesel Engine : Yuchai

Contact Now

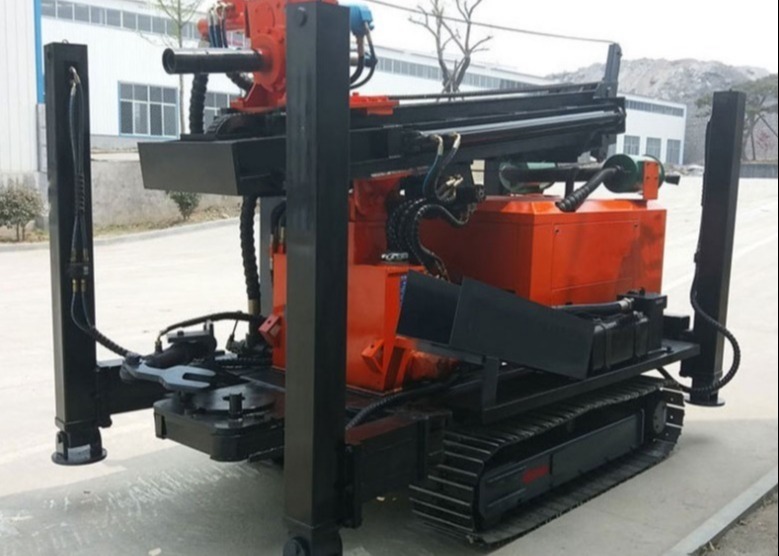

OEM Design ST 200 Portable Water Well Drilling Rig Machine

ST 200 Water Well Drilling Machine Introduction

This is a light, efficient and multi-functional drilling and drilling equipment. It is mainly suitable for industrial and civil drilling and geothermal drilling. It has the advantages of compact structure, fast footage, flexible movement and wide application area. It is especially suitable for taking water from mountainous and rocky strata.

ST 200 Water Well Drilling Machine Technical Data

Drilling Depth	200m
Dia.hole	φ140-200mm
Advance Length one time	6.6m
Working pressure	1.7-3.0MPa
Air consumption	17-35m³/min
Length of rod	1.5m,2m,3m,6m
Dia. Of rod	φ76, φ89,φ102,φ114
Lifting power	24T
Rotation torque	8500-11000N.m
Rotation Speed	40-70r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Travelling speed	0-2.5 Km/h
Climb capacity	30°
Weight	9000kgs
Dimension	5900x2000x2850mm
Application	Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way	Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer	4",5",6",8" Drill hammer or CIR110, 130, 150,170

ST 200 Water Well Drilling Rig Featuress

1. The drilling rig makes the overall power loss small and the drilling cost low.

2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m.

3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents.

4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical

power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents.

5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short.

6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.

Shitan Machinery provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!

Order Process:

1), Send inquiry

2), We will contact you

3), Confirm your require model quantity and details

4), Send you the invoice

5), Wait for your deposit

6), Prepare your products, pack your products, delivery

7), Send you document for custom

8), After sale service
